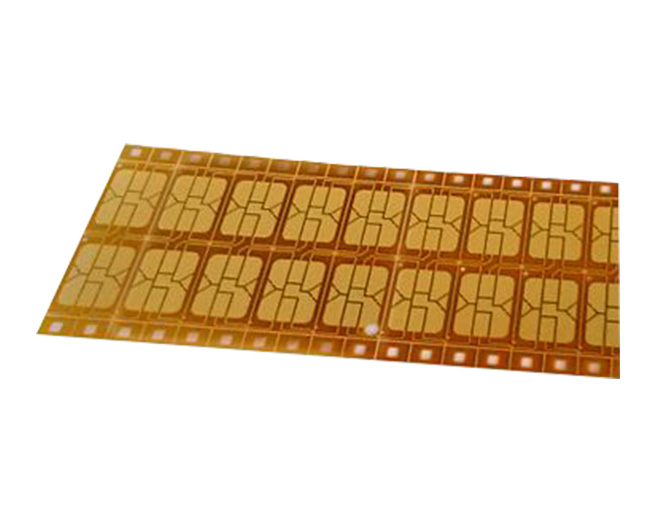

TELECOM CHIP MODULE QP128SF It is a 32 bits CPU smart card IC with ROM，FLASH，EEPROM and RAM memory, hardware DES / RNG / CRC and Cryptographic Coprocessor (CCP). It is suitable for contactless /contact smart card

FEATURES:

(1) CPU

• High-performance/Low Power 32-bit ARM Secure core SC000 ARMv6-M Thumb instruction set
• 3-stage pipeline Little-endian
• System clock frequency can be configured
• Internal clock: 7.5MHz, 15MHz, 30MHz
• External clock: clock Input through C3 pin

(2) Memory

• FLASH
• Size: 420 KB
• Page size: 512 Bytes
• Erase and program operation: page erase page program
• Page Erase is mandatory before a Page Program operation(consecutive page program is NOT supported) Typical time: erase 4.0ms, program 30us per
• byte Bit logic: 0b after erasing, 1b after programming 1b Usage: data and code
• 100,000 times write erase cycles and 10 years data retention under normal operating condition
• RAM
• Size: 9KB, CPU data area
• OTP
• 17 Bytes SN
• 224 Bytes for user OTP

(3) Coprocessors, peripherals, and Algorithms

• Coprocessor supports DMM(Dynamic Memory Management) Symmetric algorithms
• DES/T-DES Peripherals
• CRC: 16-bit CRC-CCITT
• TRNG: True Random Number Generator, for secure transactions Timer: 2 Typical timers and 1 ETU timer

(4) Interfaces

• ISO/IEC 7816 Master/Slave interface Support T=0/T=1 protocol
• Support 9 baud rates: F/D = F/D = 11H, 12H, 13H, 18H, 91H, 92H, 93H, 94H, 95H
• Baud rate supported > 9600 bps
• 3BH and 60H are sent automatically by hardware Support GSM power consumption standards Support FIFO mode, 5 bytes

(5) Contactless interface and contact interface (T=0) can work simultaneously when contactless transaction is in progress. Contact interface automatically cache the contact command header and send the NULL byte Security

• Environment monitor circuit High/Low Voltage detection High/Low Frequency detection High/Low Temperature detection Power Glitch Sensor (GS)
• Light sensor
• Scrambling of memory for address and data Special Function Register (SFR)
• Unique Chip Identification Number ANTI-SPA and ANTI-DPA ATTACK Watchdog timer circuit
• Memory storage encryption Bus encryption
• EAL4+ security certification

(6) Operating Temperature

• -25°C ~ +85°C

(7) Operating Voltage

• 1.8V~5.0V
• ESD > 4000V

(8) Security

• Environment monitor circuit High/Low Voltage detection High/Low Frequency detection High/Low Temperature detection Power Glitch Sensor (GS)
• Light sensor
• Scrambling of memory for address and data Special Function Register (SFR)
• Unique Chip Identification Number ANTI-SPA and ANTI-DPA ATTACK Watchdog timer circuit
• Memory storage encryption Bus encryption
• EAL4+ security certification

(9)Operating Temperature

• -25°C ~ +85°C

(10) Operating Voltage

• 1.8V~5.0V
• ESD > 4000V
